TUBULAR MOTOR
PAT, a dedicated tubular motor manufacturer, emerges as an industry expect of distinction
.The company invests heavily in R&D to lift its products into a league that
competes with international industry leaders. It has successfully implemented a management
system compliant with ISO9001 standards throughout all levels of the company's
operation to ensure an output of highest quality and consistency that withstands
most rigorous scrutiny.
PAT tubular motors are the driving force behind many roller shutters, awnings and
garage doors. The products emit minimal noise when in operation, are easy to conceal,
compact in size and a whisk to install. They surely meet people's need in their |
|
|
| 230V / 50Hz |
Rated
Torque |
Rated
Speed |
Tube
Diameter |
Rated
Voltage |
Rated
Frequency |
Rated
Power Input |
Rated
Current |
Running
Time |
Degree of
Protection |
Max Number
of Turns |
L1 / L2 |

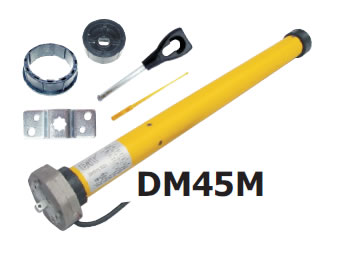

DM45M
Manual |
DM45M - 20/15 |
20 |
15 |
45 |
230 |
50 |
205 |
0.92 |
4 |
IP44 |
23 |
615/597 |
| DM45M - 20/26 |
20 |
26 |
45 |
230 |
50 |
292 |
1.29 |
4 |
IP44 |
45 |
615/597 |
| DM45M - 30/15 |
30 |
15 |
45 |
230 |
50 |
230 |
1.10 |
4 |
IP44 |
23 |
665/647 |
| DM45M - 40/15 |
40 |
15 |
45 |
230 |
50 |
292 |
1.29 |
4 |
IP44 |
23 |
665/647 |
| DM45M - 50/3.5 |
50 |
3.5 |
45 |
230 |
50 |
205 |
0.92 |
4 |
IP44 |
23 |
665/647 |
| DM45M - 50/12 |
50 |
12 |
45 |
230 |
50 |
308 |
1.41 |
4 |
IP44 |
23 |
665/647 |
|
| 230V / 50Hz |
Rated
Torque |
Rated
Speed |
Tube
Diameter |
Rated
Voltage |
Rated
Frequency |
Rated
Power Input |
Rated
Current |
Running
Time |
Degree of
Protection |
Max Number
of Turns |
L1 / L2 |

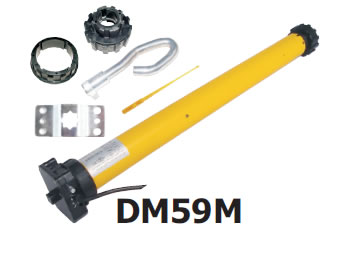

DM59M
Manual |
DM59M - 60/15 |
60 |
15 |
59 |
230 |
50 |
370 |
1.60 |
4 |
IP44 |
22 |
717/702 |
| DM59M - 80/15 |
80 |
15 |
59 |
230 |
50 |
430 |
2.00 |
4 |
IP44 |
22 |
717/702 |
| DM59M - 100/12 |
100 |
12 |
59 |
230 |
50 |
491 |
2.32 |
4 |
IP44 |
22 |
717/702 |
|
| 230V / 50Hz |
Rated
Torque |
Rated
Speed |
Tube
Diameter |
Rated
Voltage |
Rated
Frequency |
Rated
Power Input |
Rated
Current |
Running
Time |
Degree of
Protection |
Max Number
of Turns |
L1 / L2 |

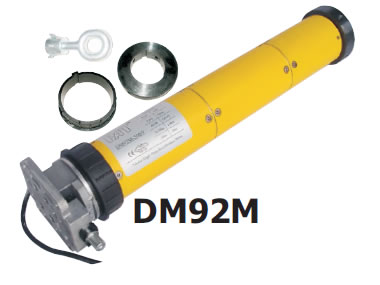

DM92M
Manual |
DM92M - 140/12 |
140 |
12 |
92 |
230 |
50 |
620 |
3.10 |
4 |
IP44 |
30 |
512/497 |
| DM92M - 230/12 |
230 |
12 |
92 |
230 |
50 |
850 |
4.10 |
4 |
IP44 |
30 |
512/497 |
| DM92M - 300/9 |
300 |
9 |
92 |
230 |
50 |
850 |
4.10 |
4 |
IP44 |
30 |
542/527 |
|
| |
